STANDCO Vibrating Reed Tachometers

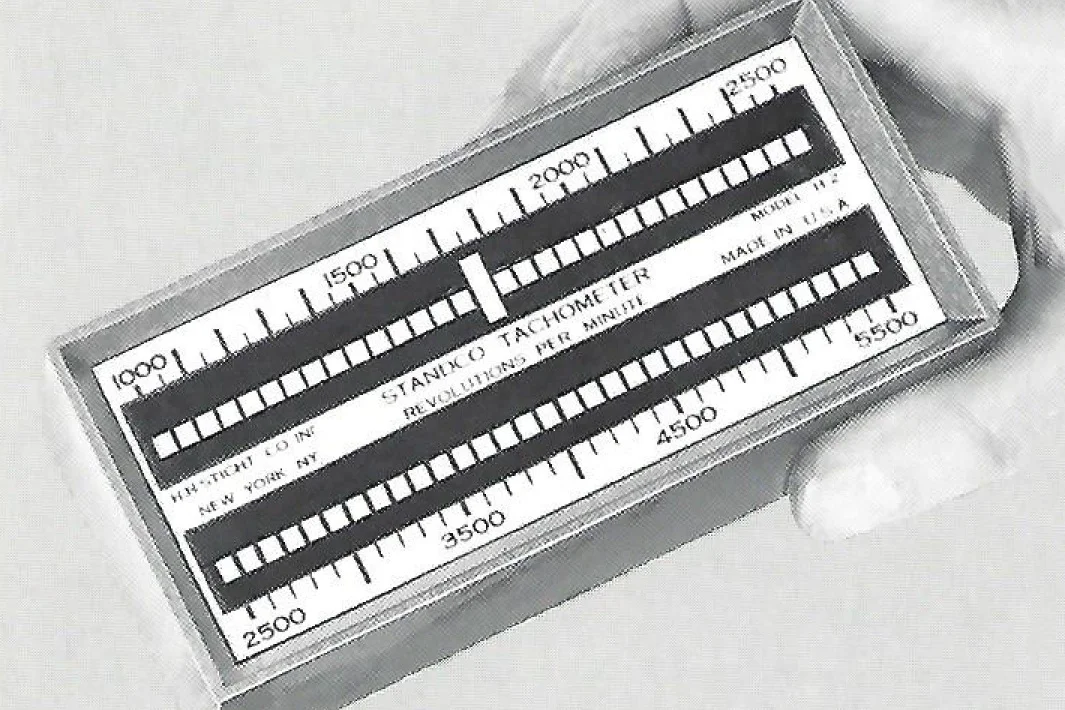

TYPE H-2 HAND HELD—WITH 2 ROWS OF 31 REEDS
*Delivery takes 4-6 weeks
These units are designed to be held against the housing of the equipment being checked. They can also be permanently mounted if desired with 8400 and 8401 brackets. Carrying cases are available.
Scroll down for more information
Available with N.I.S.T. Certification
TYPE H-3 HAND HELD—WITH 2 ROWS OF 61 REEDS
*Delivery takes 4-6 weeks
These units are designed to be held against the housing of the equipment being checked. They can also be permanently mounted if desired with 8400 and 8401 brackets. Carrying cases are available.
Scroll down for more information
Available with N.I.S.T. Certification
TYPE D-1 DWARF—WITH 1 ROW OF 21 REEDS
*Delivery takes 4-6 weeks
Because of their small size these hand meters are easy to carry in your toolcase or pocket. Mounting brackets are available is permanent installation is preferred. Carrying case available.
Scroll down for more information
Available with NIST Certification.
TYPE D-2 DWARF—WITH 2 ROWS OF 21 REEDS
*Delivery takes 4-6 weeks
Because of their small size these hand meters are easy to carry in your toolcase or pocket. Mounting brackets are available is permanent installation is preferred. Carrying case available.
Scroll down for more information
Available with NIST Certification.
TYPE R1—WITH 1 ROWS OF 31 REEDS
*Delivery takes 4-6 weeks
These vibrating reed tachometers are designed for permanent mounting. They are fitted with lugs to suit the mounting brackets shown below. Enclosed in a gasketed, splash proof case, these instruments have a white face with black markings.
Scroll down for more information
Available with NIST Certification.
TYPE R2—WITH 2 ROWS OF 31 REEDS
*Delivery takes 4-6 weeks
These vibrating reed tachometers are designed for permanant mounting. They are fitted with lugs to suit the mounting brackets shown below. Enclosed in a gasketed, splash proof case, these instruments have a white face with black markings.
Scroll down for more information
Available with NIST Certification.
Hand & Pocket Laser Tachometers
Deumo Precision Eddy Current Hand Tachometer
The Sticht MT-200 & MT-500 mechanical tachometer accurately measures rotational and surface speed.
The MT-200 & MT-500's rugged construction and portability make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.
This analog tachometer does not require batteries which makes it a perfect tool for field service personnel.
Measuring RangesMT-200
RPM: 16-200 / 160-2,000 / 1,600-20,000
FPM: 4.8-60 / 48-600 / 480-6,000
MT-500
RPM: 40-500 / 400-5,000 / 4,000-50,000
FPM: 12-150 / 120-1,500 / 1,200-15,000
Accuracy: ±0.5% Full Scale
Dimensions: 3.3 x 6.1 x 1.8" (85 x 155 x 45 mm)
Weight: 11 oz
Housing Material: ABS Plastic
Warranty: 1 year
The Deumo MT-200/MT-500 is supplied as a complete kit that includes five (5) cone tips, funnel tip and surface speed wheel in a hard-plastic carrying case.
Model MT-1B Pocket Laser Tachometer
• Compact Pocket Design
• Sharp Visible Laser Beam
• Up to 60" Range
• Contact or Non-Contact Operation
• Measures RPM & Velocity
• Simple One Button Operation
• 14 Memories
• Converts Metric & English Readings
• Long Battery Life
• NIST Certificate
• Complete Kit of Contact Adapters
• One Year Warranty
The Model MT-1B Pocket Laser Tachometer is a compact and highly accurate industrial measuring instrument designed for ease of use and maximum versatility in the plant and field. With MT-1B measures total revolutions (REV), revolutions-per-minute, and length in yards, feet, and meters.
14 reading memory with up to ten selectable measurements, including minimum, maximum, and final. New energy saving design provides long battery life from three AA Alkaline batteries.
The instrument comes as a complete kit with Carrying Case, 6" Circumference Wheel, Funnel Adapter, Cone Adapter, Contact Adapter, Reflective Tape, NIST Certificate and Instruction Manual.
DH-4M Microprocessor Controlled Digital Hand Tachometer
• Bright LED Display
• Multi-Mode Speed Selection
• N.I.S.T. Calibration Included
• Wide Speed Range
In addition to measuring rotational linear and surface speeds, our new model DH-4M now measures total length in meters , centimeters, inches, feet and yards. Other new features include longer lasting battery life with fewer batteries and increased memory. Manufactured to ISO 9001 standards, the rugged DH-4M hand tachometer offers the latest in microprocessor technology to provide the utmost in accuracy and versatility. a die cast aluminum housing insures durability and protection.
WIDE ROTATIONAL SPEED RANGE
Measures from 0.1 to 25,000RPM with a floating decimal for automatic indication in tenths from 0.1 to 999.9
MULTI-MODE ROTATIONAL SPEED SELECTION
Per Minute: RPM, FPM, mPM, YPM, IPM
Per Hour: RPH, FPH, mPH, YPH, MPH
LARGE MEMORY CAPACITY
Provides last reading maximum, minimum, and 10 additional speed readings- automatically or by selection.
COMPLETE ACCESSORIES
Comes with carrying case, master wheel, 2 cone adapters, 1 funnel adaptor, 3 1/2 extension shaft, batteries.
OVERSPEND PROTECTION
A single-range low inertia drive system uses optical loading. The result is minimum shaft loading and elimination of the possibility of instrument damage because of over speed on too low a range setting.
N.I.S.T. CERTIFICATION INCLUDED
ALSO AVAILABLE: MODEL DH4-LM WITH LCD DISPLAY AND 65 HOUR BATTERY LIFE
